开发者使用麒麟(Kylin)操作系统时通常需要使用客户端工具连接操作系统以达到文件管理,执行命令以及安装应用的目的。远程连接已经安装麒麟(Kylin)操作系统的服务的方法有很多种,本文主要阐述如何使用VNC远程连接麒麟(Kylin)操作系统。
一、先决条件:
1、可以使用root或者其他有管理员权限的账号登录麒麟(Kylin)操作系统。
2、用于远程连接服务器的客户端与服务器之前网络有连通性保证;
3、服务器用于的SSH端口22可以被正常访问,用于VNC连接的端口5901、5902可以被正常访问。
演示操作系统版本:NeoKylin Linux Advanced Server release V7Update6 (Chromium)
[root@ecs-f61c-0001 ~]# nkvers############## NeoKylin Linux Version#################Release:NeoKylin Linux Advanced Server release V7Update6 (Chromium)Kernel:4.14.0-115.5.1.el7a.06.aarch64Build:NeoKylin Linux Advanced Server
release V7Update6/(Chromium)-aarch64b06.lic/20190619
[root@ecs-f61c-0001 sysconfig]# yum install tigervnc-server
[root@ecs-f61c-0001 sysconfig]# yum install vnc
[root@ecs-f61c-0001 sysconfig]# systemctl stop firewalld.service[root@ecs-f61c-0001 sysconfig]# systemctl disable firewalld.service
vncserver的配置,创建一个新的配置文件,以开启1号窗口为例(也可以同时开启多个窗口,修改数字即可),方法如下(以下命令复制了两个vncserver服务,也就是可以同时允许2个桌面启动,多个桌面以此类推):
[root@ecs-f61c-0001 sysconfig]# cp /lib/systemd/system/vncserver@.service /lib/systemd/system/vncserver@:1.service[root@ecs-f61c-0001 sysconfig]# cp /lib/systemd/system/vncserver@.service /lib/systemd/system/vncserver@:2.service
编辑/lib/systemd/system/vncserver@:1.service,设置用户root相关参数,最终内容如下(如果有多个服务,全部需要查看一下,一般不需要修改):
# The vncserver service unit file## Quick HowTo:# 1. Copy this file to /etc/systemd/system/vncserver@.service# 2. Replace <USER> with the actual user name and edit vncserver# parameters appropriately# (ExecStart=/usr/sbin/runuser -l <USER> -c "/usr/bin/vncserver %i"# PIDFile=/home/<USER>/.vnc/%H%i.pid)# 3. Run `systemctl daemon-reload`# 4. Run `systemctl enable vncserver@:<display>.service`## DO NOT RUN THIS SERVICE if your local area network is# untrusted! For a secure way of using VNC, you should# limit connections to the local host and then tunnel from# the machine you want to view VNC on (host A) to the machine# whose VNC output you want to view (host B)## [user@hostA ~]$ ssh -v -C -L 590N:localhost:590M hostB## this will open a connection on port 590N of your hostA to hostB's port 590M# (in fact, it ssh-connects to hostB and then connects to localhost (on hostB).# See the ssh man page for details on port forwarding)## You can then point a VNC client on hostA at vncdisplay N of localhost and with# the help of ssh, you end up seeing what hostB makes available on port 590M## Use "-nolisten tcp" to prevent X connections to your VNC server via TCP.## Use "-localhost" to prevent remote VNC clients connecting except when# doing so through a secure tunnel. See the "-via" option in the# `man vncviewer' manual page.[Unit]Description=Remote desktop service (VNC)After=syslog.target network.tarGET@[Service]Type=forking# Clean any existing files in /tmp/.X11-unix environmentExecStartPre=/bin/sh -c '/usr/bin/vncserver -kill %i > /dev/null 2>&1 || :'ExecStart=/usr/sbin/runuser -l <USER> -c "/usr/bin/vncserver %i"PIDFile=/home/<USER>/.vnc/%H%i.pidExecStop=/bin/sh -c '/usr/bin/vncserver -kill %i > /dev/null 2>&1 || :'[Install]WantedBy=multi-user.target
[root@ecs-f61c-0001 sysconfig]# systemctl daemon-reload
[root@ecs-f61c-0001 sysconfig]# vncpasswd rootPassword:Verify:Would you like to enter a view-only password (y/n)? yPassword:Verify:
按提示输入密码以及确认密码
[root@ecs-f61c-0001 sysconfig]# systemctl start vncserver@:1.service或者[root@ecs-f61c-0001 sysconfig]# vncserver :1
其他桌面类似
[root@ecs-f61c-0001 sysconfig]# systemctl stop vncserver@:1.service或者[root@ecs-f61c-0001 sysconfig]# vncserver -kill :1
其他桌面类似
[root@ecs-f61c-0001 sysconfig]# systemctl enable vncserver@:1.service[root@ecs-f61c-0001 sysconfig]# systemctl enable vncserver@:2.service

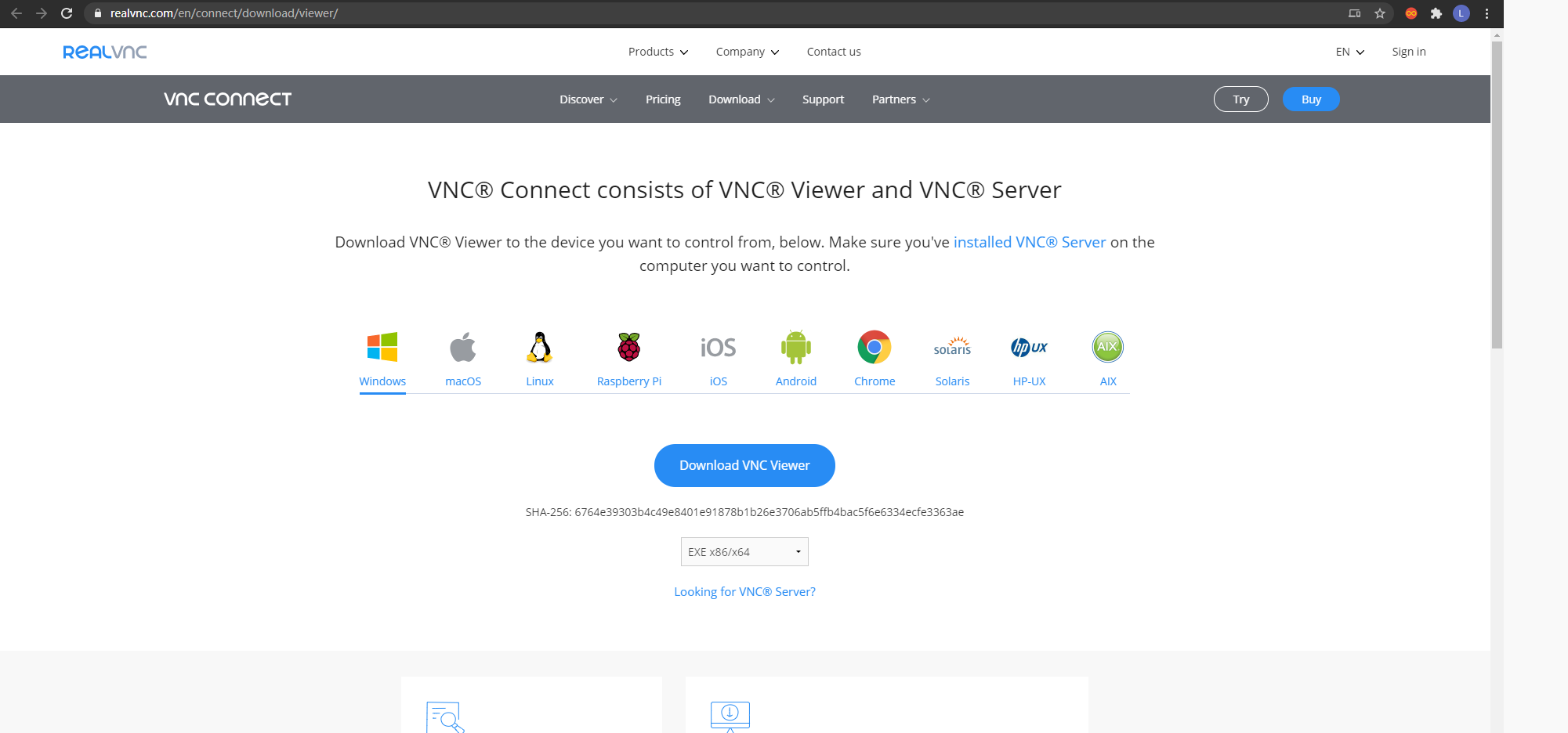

RealVNC官网:https://www.realvnc.com/en/connect/download/viewer/
下载地址:https://www.realvnc.com/download/file/viewer.files/VNC-Viewer-6.20.529-Windows.exe
安装客户端(略)
启动客户端:

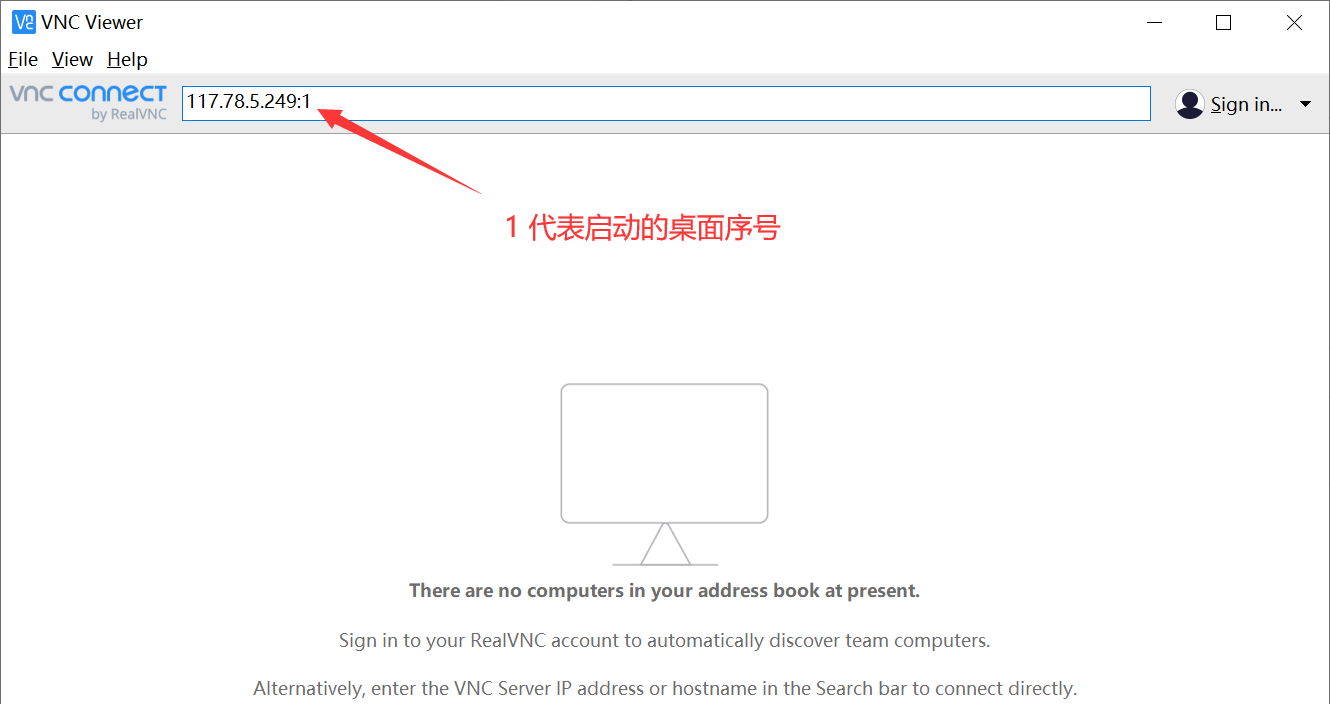

连接服务器桌面:

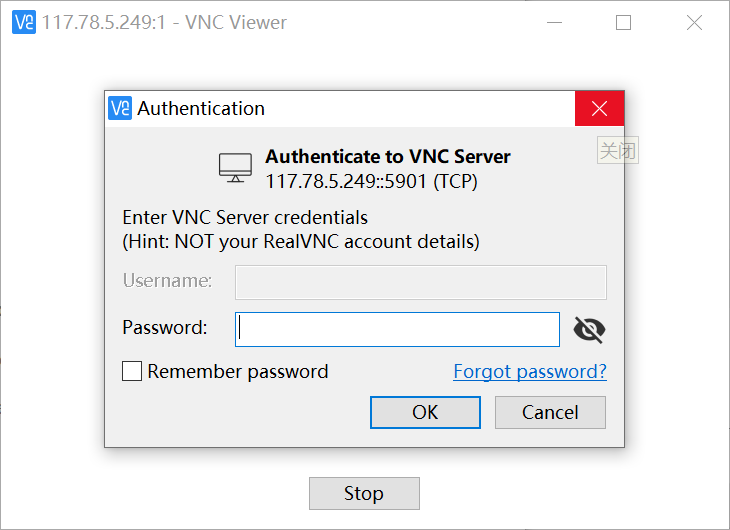

输入密码连接成功:

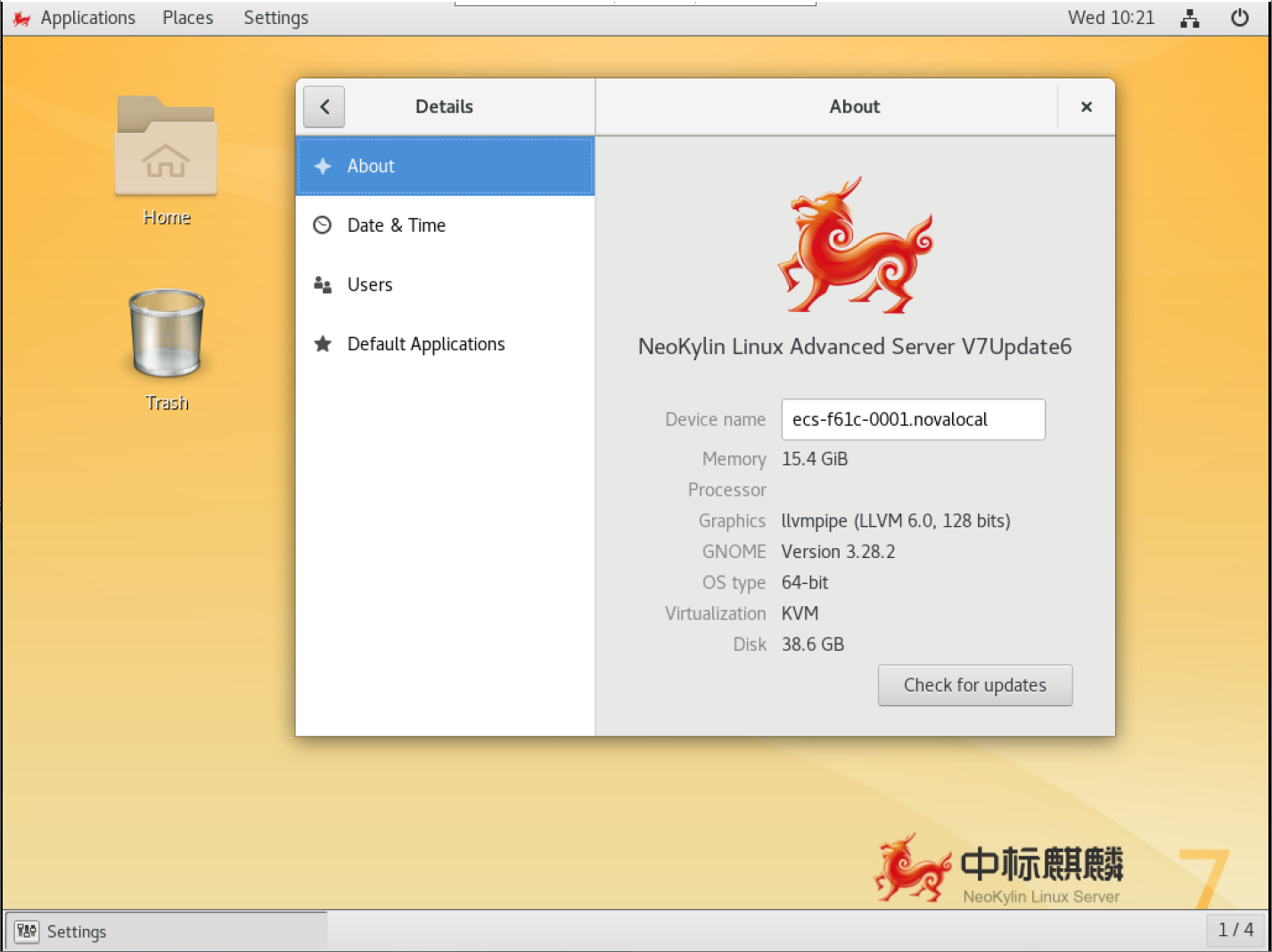

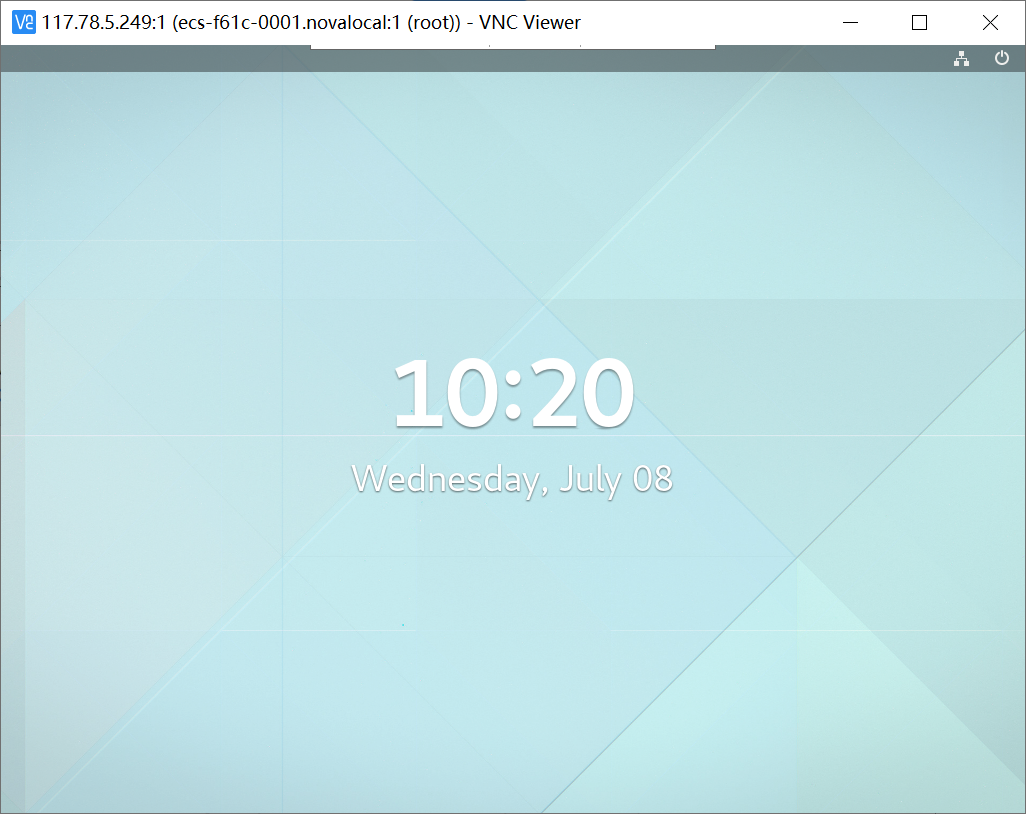

正常登录服务器并且进行操作:
[root@ecs-f61c-0001 sysconfig]# systemctl status -l vncserver@:2.servicevncserver@:2.service - Remote desktop service (VNC)Loaded: loaded (/etc/systemd/system/vncserver@:2.service; enabled; vendor preset:disabled)Active: failed (Result: exit-code) since 一 2016-04-25 19:07:23 CST; 7s agoProcess: 10305 ExecStart=/usr/sbin/runuser -l fang -c /usr/bin/vncserver %i (code=exited,status=1/FAILURE)Process: 10291 ExecStartPre=/bin/sh -c /usr/bin/vncserver -kill %i > /dev/null 2>&1 || :(code=exited, status=0/SUCCESS)
4月 25 19:07:23 localhost.localdomain systemd[1]: Starting Remote desktop service (VNC)...4月 25 19:07:23 localhost.localdomain systemd[1]: vncserver@:2.service: control processexited, code=exited status=14月 25 19:07:23 localhost.localdomain systemd[1]: Failed to start Remote desktop service(VNC).4月 25 19:07:23 localhost.localdomain systemd[1]: Unit vncserver@:2.service entered failedstate.4月 25 19:07:23 localhost.localdomain systemd[1]: vncserver@:2.service failed.
[root@ecs-f61c-0001 sysconfig]# systemctl start vncserver@:2.serviceJob for vncserver@:2.service failed because the control process exited with error code. See"systemctl status vncserver@:2.service" and "journalctl -xe" for details.[root@ecs-f61c-0001 sysconfig]# systemctl status -l vncserver@:2.service● vncserver@:2.service - Remote desktop service (VNC)Loaded: loaded (/etc/systemd/system/vncserver@:2.service; enabled; vendor preset:disabled)Active: failed (Result: exit-code) since 一 2016-04-25 19:09:41 CST; 6s agoProcess: 12367 ExecStart=/usr/sbin/runuser -l root -c /usr/bin/vncserver %i (code=exited,status=98)Process: 12354 ExecStartPre=/bin/sh -c /usr/bin/vncserver -kill %i > /dev/null 2>&1 || :(code=exited, status=0/SUCCESS)
4月 25 19:09:41 localhost.localdomain systemd[1]: Starting Remote desktop service (VNC)...4月 25 19:09:41 localhost.localdomain systemd[1]: vncserver@:2.service: control processexited, code=exited status=984月 25 19:09:41 localhost.localdomain systemd[1]: Failed to start Remote desktop service(VNC).4月 25 19:09:41 localhost.localdomain systemd[1]: Unit vncserver@:2.service entered failedstate.4月 25 19:09:41 localhost.localdomain systemd[1]: vncserver@:2.service failed.
这个问题是很多人容易忽视的问题,也是造成连接成功后黑屏的原因之一。
在CentOS中,xstartup的文件路径为:/root/.vnc/ (可以通过locate xstartup来查看xstartup的文件路径)
所以需要执行:
[root@ecs-f61c-0001 sysconfig]# chmod 777 /root/.vnc/xstartup
关闭防火墙
[root@ecs-f61c-0001 sysconfig]# systemctl stop firewalld.service #停止[root@ecs-f61c-0001 sysconfig]# systemctl disable firewalld.service #禁用
以上内容主主要介绍通过VNC远程连接Linux操作系统(Kylin操作系统)的配置方式,希望对您有帮助。
